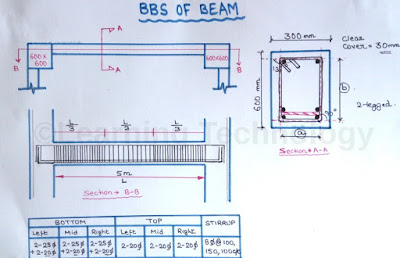

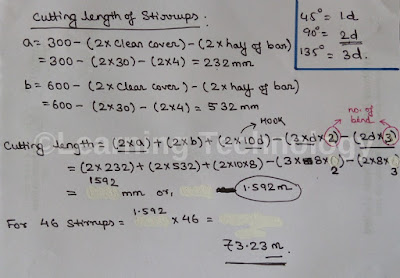

BBS (Bar Bending Schedule) - Beam Reinforcement Details

HELLO FRIENDS
I am uploading my documents for you only on your request, So that you can download it from here. But one thing keep in mind that this is only the hand made notes. If you want detailed knowledge then watch my video on you tube. I am telling this because many important points i cover during making of video, so if you want to know in detail then watch my video.
